ESP-12E I2C Base Card

As a follow-up on the ESP-12E Card, today we will look at the prototype base card that this was designed to slot into – The ESP-12E I2c Base Card.

Initial Features ( To be expanded in future versions )

4 x 40Pin Expansion slots, with access to 12v, 3.3v and Gnd on each slot.
2 x “IRQ” pins per slot ( serviced by a single PCF8574 )
I2C bus access on each slot (3.3v )
UART Header
Reset and Flash Header
GPIO Header ( Direct access to the ESP-12E GPIO Pins )
Analog Input Header (a Single input – A0, as per ESP-12E limitation)
Buck Converter Power Supply Module, capable of up to 2A of current

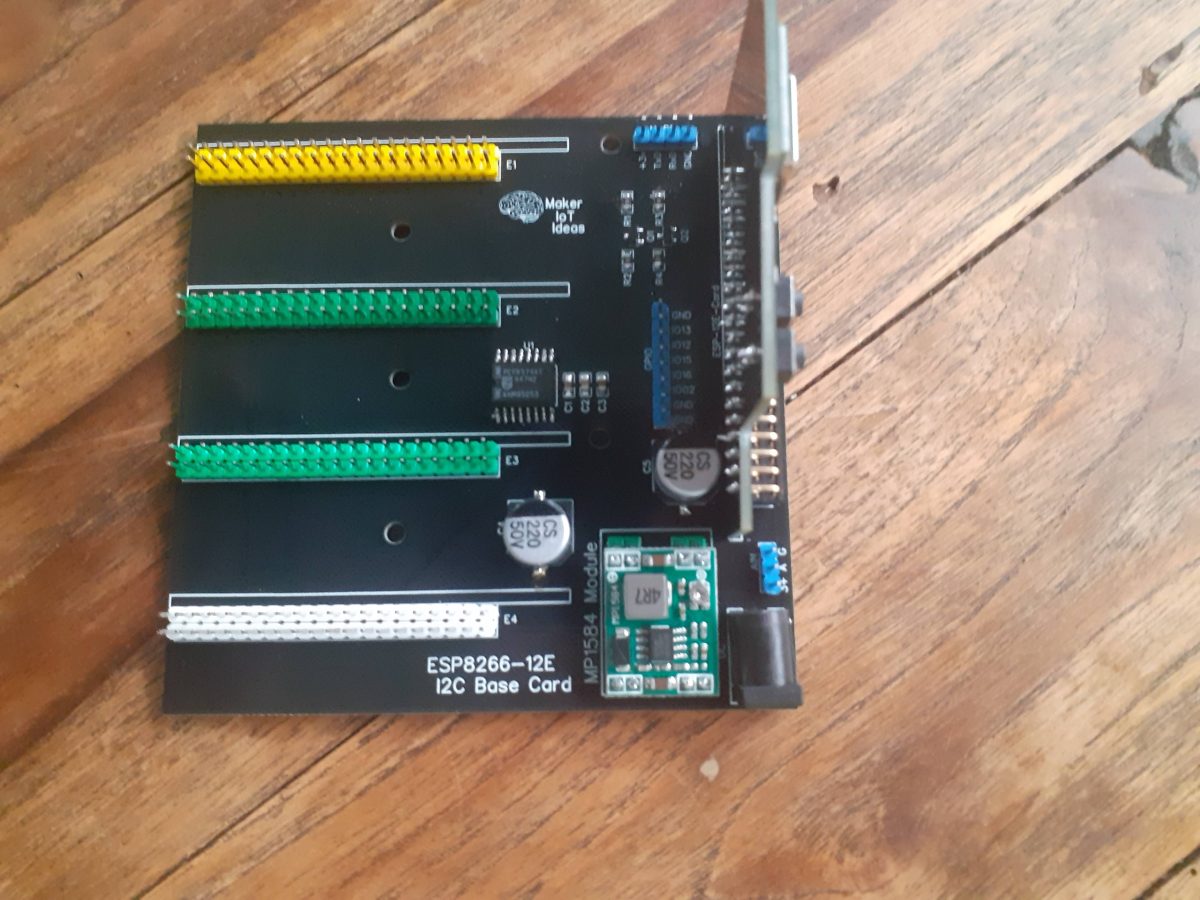

ESP-12E I2C Base Card – Top view

The Schematic

Schematic

The PCB – some pictures

ESP 12-E Card with Base Board

Manufacturing the PCB


Over the past eight years, PCBWay has continuously upgraded their MANUFACTURING plants and equipment to meet higher quality requirements, and now THEY also provide OEM services to build your products from ideas to mass production and access to the market.


The PCB for this project has been manufactured at PCBWay.
Please consider supporting them if you would like your own copy of this PCB, or if you have any PCB of your own that you need to have manufactured.
