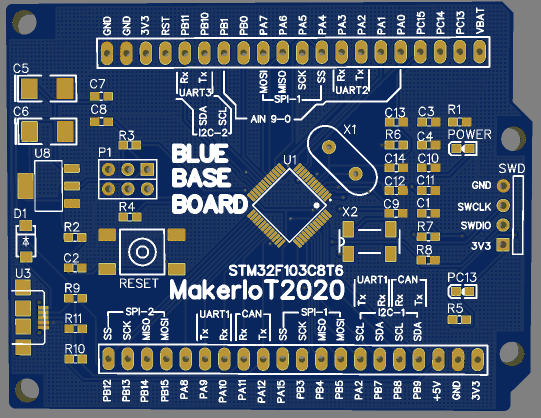

Everyone likes some free stuff once in a while. I have decided to release 3 recent PCB projects for free, no strings attached. The PCB’s include a STM32F103C8T6 ( BluePill ) in Arduino Uno Form Factor, as well as an additional two I2C IO Extender Shields, 8 DI and 8 DO, Both optically isolated, in a stack-able, addressable format.
Both I2C Shields are configured to use PB11 as SDA, PB10 as SCL and PB1 for interrupt. All other “Blue Pill” Pins are broken out on Headers, completely pin for pin compatible.
Cytron Maker Pi RP2040 features the first micro-controller designed by Raspberry Pi – RP2040, embedded on a robot controller board. The board also comes with dual channel DC motor driver, 4 servo motor ports and 7 Grove I/O connectors, ready for your next DIY robot / motion control project. Now you can build robot, while trying out the new RP2040 chip.
The DC motor driver onboard is able to control 2x brushed DC motors or 1x bipolar/unipolar stepper motor rated from 3.6V to 6V, providing up to 1A current per channel continuously. The built-in Quick Test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way, without the need of writing any code. Vmotor for both DC and servo motors depends on the input voltage supplied to the board.
ker Pi RP2040 features all the goodness of Cytron’s Maker series products. It too has lots of LEDs useful for troubleshooting (& visual effects), is able to make quite some noise with the onboard piezo buzzer and comes with push buttons ready to detect your touch.
There are three ways to supply power to the Maker Pi RP2040 – via USB (5V) socket, with a single cell LiPo/Li-Ion battery or through the VIN (3.6-6V) terminals. However only one power source is needed to power up both controller board and motors at a time. Power supply from all these power sources can all be controlled with the power on/off switch onboard.
Cytron Maker Pi RP2040 is basically the Raspberry Pi Pico + Maker series’ goodness + Robot controller & other useful features. Therefore this board is compatible with the existing Pico ecosystem. Software, firmware, libraries and resources that are developed for Pico should work seamlessly with Cytron Maker Pi RP2040 too.
CircuitPython is preloaded on the Maker Pi RP2040 and it runs a simple demo program right out-of-the-box. Connect it to your computer via USB micro cable and turn it on, you will be greeted by a melody tune and LEDs running light. Press GP20 and GP21 push buttons to toggle the LEDs on/off, while controlling any DC and servo motors connected to it to move and stop. With this demo code, you get to test the board the moment you receive it!
Out-of-the-box Demo for Cytron Maker Pi RP2040
This demo code is written in CircuitPython and it serves
as an easy quality check when you first receive the board.
It plays a melody upon power up (slide power switch to ON)
and shows running lights (blue LEDs) at the same time.
Then the two RGB LEDs will animate the colors, while the
program checking push buttons' state, repeatedly.
Press GP20 button to play a short melody, lights up all
blue LEDs, move servo motors to 0 degree and run DC motors
at 50% and -50% speeds.
Press GP21 button to play another melody, turn off all blue
LEDs, move servo motors to 180 degree & brake DC motors.
Maker Pi RP2040 also has four DC motors quick test buttons
built-in. You may press the onboard M1A, M1B, M2A or M2B
push buttons to run your motors without writing any code.
from adafruit_motor import servo, motor
LEDs placement on Maker Pi RP2040
LED_PINS = [board.GP0,
LEDS =
for pin in LED_PINS:
# Set pins as digital output
digout = digitalio.DigitalInOut(pin)
digout.direction = digitalio.Direction.OUTPUT
Initialize Neopixel RGB LEDs
pixels = neopixel.NeoPixel(board.GP18, 2)
MELODY_NOTE = [659, 659, 0, 659, 0, 523, 659, 0, 784]
MELODY_DURATION = [0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.2]
Define pin connected to piezo buzzer
PIEZO_PIN = board.GP22
btn1 = digitalio.DigitalInOut(board.GP20)
btn2 = digitalio.DigitalInOut(board.GP21)
btn1.direction = digitalio.Direction.INPUT
btn2.direction = digitalio.Direction.INPUT
btn1.pull = digitalio.Pull.UP
btn2.pull = digitalio.Pull.UP
50% duty cycle: 2**15 = 32768 = 1/2 of 65536 (16-bit)
servo_motors =  # create an array and add servo objects.
servo_motors.append(servo.Servo(pwmio.PWMOut(board.GP12, duty_cycle=215, frequency=50))) servo_motors.append(servo.Servo(pwmio.PWMOut(board.GP13, duty_cycle=215, frequency=50)))
servo_motors.append(servo.Servo(pwmio.PWMOut(board.GP14, duty_cycle=215, frequency=50))) servo_motors.append(servo.Servo(pwmio.PWMOut(board.GP15, duty_cycle=215, frequency=50)))
Initialize DC motors
m1a = pwmio.PWMOut(board.GP8, frequency=50)
m1b = pwmio.PWMOut(board.GP9, frequency=50)
motor1 = motor.DCMotor(m1a, m1b)
m2a = pwmio.PWMOut(board.GP10, frequency=50)
m2b = pwmio.PWMOut(board.GP11, frequency=50)
motor2 = motor.DCMotor(m2a, m2b)
ON START: Show running light and play melody
for i in range(len(LEDS)):
LEDS[i].value = True
if i < len(MELODY_NOTE): # Play melody tones simpleio.tone(PIEZO_PIN, MELODY_NOTE[i], duration=MELODY_DURATION[i]) else: # Light up the remainding LEDs time.sleep(0.15)
Turn off LEDs one-by-one very quickly
for i in range(len(LEDS)):
LEDS[i].value = False
color = 0
state = 0
FOREVER LOOP: Check buttons & animate RGB LEDs
# Check button 1 (GP20) if not btn1.value: # button 1 pressed # Light up all LEDs for i in range(len(LEDS)): LEDS[i].value = True # Move servos to 0 degree for i in range(len(servo_motors)): servo_motors[i].angle = 0 # Move motors at 50% speed motor1.throttle = 0.5 # motor1.throttle = 1 or -1 for full speed motor2.throttle = -0.5 # Play tones simpleio.tone(PIEZO_PIN, 262, duration=0.1) simpleio.tone(PIEZO_PIN, 659, duration=0.15) simpleio.tone(PIEZO_PIN, 784, duration=0.2) # Check button 2 (GP21) elif not btn2.value: # button 2 pressed # Turn off all LEDs for i in range(len(LEDS)): LEDS[i].value = False # Move servos to 180 degree for i in range(len(servo_motors)): servo_motors[i].angle = 180 # Brake motors motor1.throttle = 0 # motor1.throttle = None to spin freely motor2.throttle = 0 # Play tones simpleio.tone(PIEZO_PIN, 784, duration=0.1) simpleio.tone(PIEZO_PIN, 659, duration=0.15) simpleio.tone(PIEZO_PIN, 262, duration=0.2) # Animate RGB LEDs if state == 0: if color < 0x101010: color += 0x010101 # increase rgb colors to 0x10 each else: state += 1 elif state == 1: if (color & 0x00FF00) > 0: color -= 0x000100 # decrease green to zero else: state += 1 elif state == 2: if (color & 0xFF0000) > 0: color -= 0x010000 # decrease red to zero else: state += 1 elif state == 3: if (color & 0x00FF00) < 0x1000: color += 0x000100 # increase green to 0x10 else: state += 1 elif state == 4: if (color & 0x0000FF) > 0: color -= 1 # decrease blue to zero else: state += 1 elif state == 5: if (color & 0xFF0000) < 0x100000: color += 0x010000 # increase red to 0x10 else: state += 1 elif state == 6: if (color & 0x00FF00) > 0: color -= 0x000100 # decrease green to zero else: state += 1 elif state == 7: if (color & 0x00FFFF) < 0x001010: color += 0x000101 # increase gb to 0x10 else: state = 1 pixels.fill(color) # fill the color on both RGB LEDs # Sleep to debounce buttons & change the speed of RGB color swipe time.sleep(0.05)
